K Rations

Outer Carton

First of all, it must be explained that the Quartermaster Corps makes a difference between packaging and packing.


Packing identical items of the actual foodstuff together in a cardboard box, a paper wrapping or sealed in cellophane is called "packaging".


Although the components are packed together, they are considered a "package".
Placing several (different) packages together in a container is called "packing".
This means that the induvidual packages were packed together in the Breakfast, Dinner or Supper units. These in turn were packages that were packed in shipping crates. It's not confusing at all, right?

From a May 1943 circular: The following distinction has been made between packaging and packing. "Packaging" contains the product itself, is often designed along with the product, and is usually accomplished at the source or production point. "Packing" has to do with the exterior container or shipping container. It may be accomplished at the source or production point, or in depots, or in the field, as in the case of orginazational equipment.

The Quartermaster Corps contracted  companies to act as a prime contractor. These companies had previous experience in handling and packing foodstuffs, had ample space and manpower, and the special machines for processing (like waterproofing and closing) the inner and outer cartons.


These prime contractors ordered the contents for the K Rations from approved subcontractors and packed them together in the seperate units. When the units were ready they were packed for shipment, twelve complete rations in a case.

Apparently Lamont, Corliss & Company didn't packed the ration themselves.


Known prime contractors are:
- Lamont, Corliss & Company
- The Hills Brothers Company
- Beech-Nut Packing Company
- Wm Wrigley Jr. Company
- Patten Food Products
- H. J. Heinz Company
- General Foods Corporation
- Kellogg Company
- American Chicle Company
- Hiram Walker & Sons Incorporated
- Campbell Soup Company
- Phillips Packing Company
- The Cracker Jack Company
- Doughboy Mills, Incorporated
- Chas. A. Brewer and Sons


Some companies acted as prime contractor during the whole war, others only early or later in the war, or just for one production run.

The components of the K Ration are enclosed in a carton. This carton is impregnated with a synthetic wax compound in order to weather- and gasproof the packaging. To prevent the boxes sticking together when packed in a box or crate, the individual waxed cartons are placed inside a snugly fitting box: the outer carton.

A 1942 Signal Corps photo showing the new K Ration that is packed in a single wax coated carton. In hot climate these would stick together.



Each unit is boldly printed with "U.S. ARMY FIELD RATION K", with "BREAKFAST UNIT", "DINNER UNIT" or "SUPPER UNIT" underneath. The printing is on one or both main panels of the outer carton.


A letter "B", "D" or "S" is usually printed on one or both ends to identify the unit when the rations were placed up right in a shipping box.

A telephone operator in Normandy has stacked three K Rations units (circled in red) on top of his switchboard.



Due to specific changes in the design of the labels on the outer cartons I divided them in four specific types (with two sub types). These are not official typifications, but are my own for easy reference.

Type I: Only the nomenclature "U.S. Army Field Ration K" with type of unit is printed on the box. (late 1942 production)

Early experimental procurement of the K Rations had its nomenclature and the name and address of the packing company together with a list of its contents printed on one main panel.

With the contents continuously changing due to its (early) development, it was impossible to match its list of contents every procurement. It was decided that the carton would only read its nomenclature and packaging company's name and address.

An outer carton printed with its nomenclature and unit printed on both main panels and on both side panels the packagers name. Both tuck-in end flaps have the "S" for Supper.


On one or both side panels is printed the company's name and address, who served as the prime contractor, that packed the food components into the carton. Sometimes this information was printed on the main panel in the lower right corner.

Outer carton that is only printed on its front panel. There are no side or end markings.

American casualties, paratroopers killed on D-Day, are lying in a ditch near St. Marie du Mont. Although gruesome, we can't help but noticing the early (type I) K Ration next to the troopers helmet.



Type II: Suggestions are added to the front panel of unit. Components are listed on the back. (February 1943)

Experience from field tests pointed out that the soldier had no knowledge of its contents, and how to use it, before actually opening it.


A proposal of including a sheet with a list of the contents and preperation instructions was not accepted since the soldier still would have to open the carton in advance in order to read the list.


In Februari 1943 (after the inclusion of a matchbook in the Dinner unit) it was decided that one main panel, in addition to the name of the ration and unit, the following suggestions were added:

"Open inner [cellophane] bag carefully, it may be used as a waterproof container for matches, cigarettes, etc." and "For security, do not discard the empty can, paper or refuse where it can be seen from the air. If possible, cover with dirt, foliage, sand, etc."

The instructions on a Supper unit packaged by the Hills Brothers.


The back panel was printed with a list of its contents and suggestions for preparation.


All the outer cartons of the Breakfast units lists only "Ham & Eggs". The canned product, however, can be either Ham & Eggs or the canned Pork & Egg Yolk. It also states that cheese could be substituted for the Egg product. This was done just in case the egg product was not obtainable.


The Cheese product could be any of the cheese varieties developed.


The Supper unit list "Can Meat" for the canned product, this could be any of the meat varieties available. Again, cheese could be substituted as well.


So far all K Rations I have seen contained their respective Egg, Cheese or Meat product. Apparently the companies were capable of producing the quantities needed.

Later the colored "morale" cartons use the more generic "Meat & Eggs" for the Breakfast unit.

The back of a Breakfast unit listing Ham & Eggs. Note that cheese may be furnished. General Food Corporation, early 1944.

Back of a Dinner unit packaged by Patten Food Products (Mid 1943). Note that the sugar could be four tablets or one package of granulated sugar.

List of contents on a Dinner unit box. Note that there is either Lemonade or Orange Juice Powder in the unit. Although four lumps of sugar are mentioned, there was a package of 23 grams of granulated sugar in this particular unit instead. (Late 1943)

Nurses in England are getting K Rations and PX supplies for their trip across the channel to Normandy, 1944. They are recieveing the Type II version.



Type IIIa: Nomenclature is changed to "Ration, Type K". (May/June 1943)

In May/June 1943 the nomenclature of all U.S. Army rations were changed to "Ration, Type …". So the "U.S. Army Field Ration K" becomes the "Ration, Type K". Only the name of the ration changed on the carton, all the other information remained the same as before.

It should be mentioned here that I can't pinpoint the exact date of the change of the nomenclature. With the acceptance of the 5-in-1 Ration in March of 1943 there was an objection to the name "United States Army '5-in-1' Ration" and that it should be in the military traditional reversed order: Ration Five-in-One.
Official specifications issued May 1, 1943 use the name "United States Army Ration: Five-in-One". With the acceptance of the new 10-in-1 Ration one month later (June 7, 1943) the nomenclature "Ration, Ten-in-One" is used.

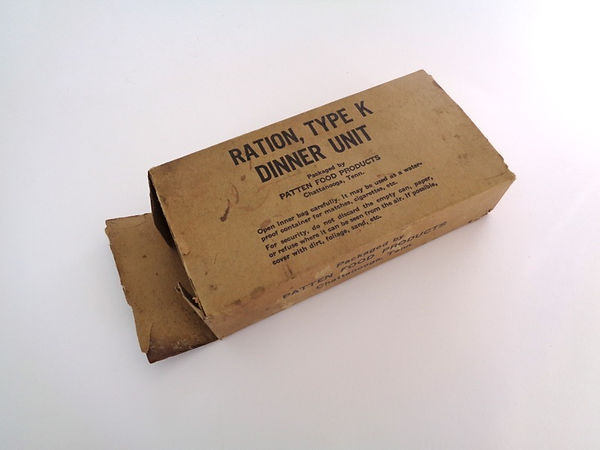

Ration, Type K. Made by the Patten Food Products (the same company that packaged the 23 grams granulated sugar cartons). The lay-out of the label was left to the packing company, as long it carried the essential information approved by the QMC.


Type IIIb: Malaria warning is added on a side panel. (February 1944)

In the fall of 1943 a request came from the Office of the Surgeon General for a malaria prevention warning to be placed on the K Ration outer carton. At first this was objected to, reasoning that malaria prevention was part of training. It was feared that when all kinds of warnings would show up on ration packagings, it could became too much that eventually nobody would bother to read.


In Februari of 1944, however, it was decided that the warning "NOTICE: mosquito bites cause malaria. If you are in a malaria zone, keep your shirt on and your sleeves rolled down. Use mosquito repellent when out of doors between sunset and sunrise." was to be printed on one of the side panels.

Just in case you haven't noticed...


Type IVa & IVb: The colored "morale" boxes are introduced. Components are the same as type IIIb, but are mentioned in a more generic list. (May 1944)

Late 1943 a new school of thought occured within the Army. Instead of providing the soldier with a ration that is packed unattractively and is therefore not very inviting, why not make it a little more attractive to the soldier by using an appealing design and color.

Four of several proposed multi-color designs.


Several multi-color designs were considered, but ultimately a one-color design for each meal was chosen. Each unit was printed with a different design in a color of low visibility. The use of different colors and designs facilitate not only distribution in the field, but also helps the packagers in the production plants to readily identify the units, there by speeding up the production process and prevents mixing units. It was determined that a color or a specific design was easier to recognize than to have to read every label to determine the correct package.

It was even suggested that the inside of the outer carton could be printed with board games, like checkers or dominoes. This idea was not acted upon, because it was felt that a frontline soldier would not have the time or inclination to play games in his foxhole.

Printing plates of the new design were prepared by the Lake Shore Electrotype Co. and provided through the Chicago office of the Quartermaster General to the carton manufacturers.

The Breakfast unit was printed with a striped design in brick red, the Dinner unit had a dark blue irregular "bubble" design, and the Supper unit was printed in a green design that featured straight lines, curves and stars.


Early 1944 the new designs were approved and went into production in May that same year. This version of the K Ration box is generally referred to as the "Morale" Boxes.

"Not only are the three meals readily identified, but the drab monotony of one color type printing is relieved. The designs are bold, masculine, and impersonal. The colors have low visibility and use a minimum amount of ink. Outstanding packaging designers contributed generously to this project, and the treatment is an import advancement in Army Packaging policy."

This idea of making a field ration attractive through design turned out to be a failed experiment. The soldiers who used it still judged, and generally condemned, the ration by its contents, no matter how joyful the packaging is. This new approach to packaging was only tried with the K Ration. (And the Air Crew Lunch, but this was not a field ration.) While the idea was also suggested with the 10-in-1 Ration, this was not acted upon.

The USAAF Air Crew Lunch of a bright red and dark blue design.


Another subtle change with the ration's outer carton is the gradual lowered quality of the cardboard used. While in 1942 only the highest quality of lined kraft paperboard was allowed, the quality detoriated from a cheaper chip kraft cardboard, to an even slightly thinner grey recycled cardboard in 1945.

The period a particular K Ration unit was produced can roughly be determined by its outer box design. Slight differences in design or contents list varied with each packer and specifications at the time of procurement.

US infantrymen are seen here advancing through the streets of a german town in 1945. Note that the BARman has a Supper unit tied to his combat suspenders.



It was left to each packer how to close the outer carton. While the inner carton has two overlapping end flaps that were glued together prior to impregnation with molten wax, the closure of the outer carton could be either seal-flaps, like the inner carton, or tuck-in flaps. This is not a specific early or late feature, but depended on the packagers capability wether it had machines for glueing the flaps shut, or that the cartons had to be hand closed, using the tuck-end style.

A GI is putting a Breakfast and a Supper unit in his shovel carrier before going into an assault in Germany, 1945.



Over time the carton grew slighly larger. Originally the outer carton was a snug fit over the inner carton. The hight of the inner carton was dictated by the hight of the 300 x 106 can. When the can was inserted into a protective sleeve, the height of the inner carton, and subsequently the outer carton, was increased.

As of September 1945 specifications for the outside dimensions of the outer carton is 3 20/32" wide, 1 20/32" high and 6 30/32" long.

Conclusion

Okay, so I came up with four different main types.
These are the distinctive changes in the outer cartons:

Type I: Only the nomenclature "U.S. Army Field Ration K" with type of unit is printed on the box. (late 1942 production)

Type II: Suggestions are added to the front panel of unit. Components are listed on the back.(February 1943)

Type IIIa: Nomenclature is changed to "Ration, Type K". (May/June 1943)
Type IIIb: Malaria warning is added on a side panel. (February 1944)

Type IVa: The colored "morale" boxes are introduced. Components are the same as type IIIb, but are mentioned in a more generic list. (May 1944)

Type IVb: Due to inclusion of cereal and extra coffee, the components list is changed. (late 1944). Salt tablets were later added to the Dinner unit's list in 1945.

Inner Carton

Early, experimental, K Rations consisted of three individual cardboard boxes in which the packages of the foodstuff was packed. These boxes were dipped in wax to seal it against gas and to make the box waterproof.

When the K Ration went into full production, six types of waterproofing methods were specified in May 1942. Each prime contractor would waterproof the rations, using a synthetic wax, as stipulated in the contract. The method of waterproofing depended on the capabilities of the company. The type VI method, however, seems never to have being used.

Type I: The carton is coated inside and outside with wax. The printing will be on the box.

Type II: The carton will be dipped in molten wax, then overwrapped with waxed kraft paper and then dipped again in molten wax. The printing will be on the waxed paper.

Type III: The (inner) carton will be dipped in molten wax and then inserted into a snugly fitting (outer) carton. The printing will be on the outer carton.

This official photo is misleading that it is showing two different types of cartons. On the right are shown two early type II units in waxed (overwrapped) cartons. In the back are the Type III outer carton with opened inner carton (this is a tuck in carton overwrapped and waxed), with the contents layed out on the left.

Type IV: The carton is of a telescoping type, wrapped with adhesive waxed kraft paper making complete contact with all surfaces of the carton. The carton then will be dipped in molten wax and overwrapped again with waxed kraft paper. The printing will be on the outer waxed paper.

Type V: All components are sealed inside a laminated cellophane bag. This bag is placed in a telescoping carton that is overwrapped twice with waxed kraft paper. The seams of the wrappings are opposite of each other. The outer wrapping bearing the printing.

All cartons have an inside dimension of 3 13/32" wide, by 1 13/32" high, and 6 19/32" long.

Type VI: The container constitutes of a square fiber body can (with rounded corners) that is coated inside and out with wax and is closed with black metal ends. A printed kraft paper label will cover the body of the fiber can completely.

A Supper unit packed by The Hills Brothers Co., using a waxed paper wrapping that has been printed in a repetative pattern.



It was found that the waxed units would stick together when stored in warm climate. To prevent sticking, type III was preferred, or if the inner carton was wrapped in waxed paper it was inserted in an outer carton. From now on a distinction was made between the inner carton and outer carton. Early productions appears to be Type IV. Later the Type III appears to be the preferred type.

This is what appears to be the first type of packaging (Type IV) used when the K ration was procured in greater numbers. This type was mainly used during training and field tests to test the new K Ration. (photo: 1944Supply)

Note how the tray fits inside a cardboard sleve, then both are overwrapped with waxed paper. The whole packaging then is protected by the outer carton with tuck in flaps. This method of packaging is what is reffered to as the telescoping type. (photo: 1944Supply)

Here's a still from the "Food for Fighters" film (1943). Clearly can be seen the trays on the conveyor belt that are being filled with the separate components, chewing gum is just being placed on top of the biscuits. Next, the can is placed towards the open end of the tray. Note that the workers are black women (cheap labor!) and that the equipment is crudely made from wooden boards.

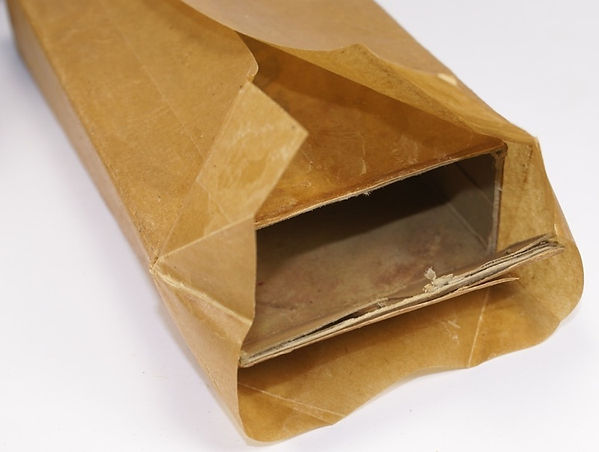

An alternative found with the early production is that the inner carton is wrapped twice with waxed paper and then inserted in the outer carton. Since the first wrapping sticks completely to all surfaces of the inner carton, it appears that the inner carton might be waxed as well.

A Beech-Nut produced Breakfast unit's inner carton that is only overwrapped twice with waxed paper, then inserted in an outer carton. The outer carton is dated 12-42.

A close up of a Chicle produced Breakfast unit shows the double wrapping with waxed paper. The first wrapping is stuck firmly to the inner carton with the second wrapping folded loosely around it, with the seam opposite of the first layer. (photo: 1944Supply)



For identification purpose the outer carton was printed, as prescribed earlier in the outer carton chapter, but it was left to the packer whether or not the inner carton needed to be marked for identification on the production line. Early on some contractors didn't deemed it necessary to mark the inner cartons, others simply used the same printing as used on the outer cartons.


Later in the war it became more common to mark the units with "BREAKFAST UNIT", "DINNER UNIT" or "SUPPER UNIT", or just "BREAKFAST", " DINNER" or "SUPPER".

"SUPPER UNIT", this is the most used type of printing on the inner cartons for identifying the units. The thick layer of wax, a result from the double dipping, can be clearly seen on this example. (photo: 1944Supply)

Some contractors used the complete nomenclature on the inner carton. This Patten Food Products Breakfast unit has the nomenclature printed only on one main panel.



The wax used for dipping is a synthetic compound with a melting point higher than 140°F and will not crack or chip at -20°F. It should not be sticky at 120°F. The wax is odorless, tasteless and non-toxic.
The waxed inner cartons all have a brown appearance. This is not caused by the color of cardboard used, but the wax itself has a brown hue. The color for the wax is set at a maximum 240 within the Red 500 Series of the Lovibond scale. (This is a color scale for liquids.)

Usually the dipping is done twice. The first dipping was done at approximately 190°F for 5 to 10 seconds to impregnate the cardboard. After a cooling period a second dipping is done with wax of a slightly lower temperature to coat the carton with a uniform protective overall coating.

A waxed carton should withstand immersion for 20 hours.

K Ration units are placed on the convayer belt of a wax dipping machine at a prime contractor in New Richmond, Wisconsin (6-28-1944).
Note that all three types of units are being waxed. This is why the inner cartons are labeled, so that after dipping all units are placed in their corresponding outer cartons.



Occasionally the inner cartons were marked with an embossing or imprint showing the name of the unit or just the letter "B", "D" or "S".

A large imprinted "B" can be seen faintly to identify the unit as a Breakfast.


When the can was inserted into a cardboard sleeve, the inside dimensions of the inner carton was increased to 3 16/32" x 1 16/32" x 6 26/32" to allow for more room.

In specifications of 1945 five methods of waterproofing are described. These methods not only refer to the waterproofing of the inner cartons, but also to the final packing in the shipping case. After waterproofing, all inner cartons are placed in an outer carton.

Waterproofing method I, II and III are all three the same, but difference is made according to the final packing of the shipping cases. Method I, IV and V are packed in a fiberboard box. Method II and III are packed in a corrugated box that is placed inside a kraft paper laminate bag, both methods using a different style of bag. (see the SHIPPING CASE chapter)

Method I, II and III: The inner carton will be dipped in molten wax, and after cooling down dipped again in slighly cooler molten wax for an overall coating.

Method IV: The inner carton is wrapped in a triple ply laminated sheet made of one layer each of sulphite paper, aluminum foil and kraft paper. This laminated sheet is waxed on the outside and, when wrapped, the seams are heat sealed. A second wrapping of waxed kraft paper is applied with its main seam opposite of the first wrapping.

A method IV inner carton has been cut in half, showing clearly the aluminum foil laminate. The dark band is from the overlapping waxed paper overwrap. (photo: 1944Supply)

A method IV laminated inner carton wrapping that has been printed with an "S" to indicate it is a Supper unit. The laminated wrapping was produced on a roll with a repeating "B", "D" or "S" printed along its entire length.
The picture above shows the kraft side and the aluminum foil side is shown below.

Method V: The inner carton is wrapped with the same laminated sheet as described in method IV, but instead of a second wrapping the carton will be dipped in molten wax.

The first method (I, II and III) is prevalent.



Cellophane bag

All food products, except the canned egg, cheese or meat product and the chewing gum, were sealed inside a cellophane bag for further protection against moister. Originally the contents were packed loose in the box, but when the K Ration went into full production a cellophane bag of single thickness was used to enclose the biscuits, sugar, confection and beverage.

A cellophane bag with its contents from an early 1944 Breakfast unit.



With the early packages it was found that the cellophane bag would crack or tear where the confection (3 15/16" long) protruded. To prevent this all confections were to be not longer then 3 1/8 inch long.

On the right: an early Supper package with the longer D-bar protruding past the three sugat tablets. Left: a Breakfast package with a fruit bar of 3 1/8" length, making it a neat rectangular package. There is enough room for a row of four sugar tablets across the bottom of the cellophane bag.



Further development on the protective qualities of the K Ration packaging led to experimentation of different types of bags. Cellophane laminated to aluminum foil or kraft paper, or a lead foil laminated to paper were tried, but not deemed durable. A new bag made of a two ply cellophane (cellophane laminated to cellophane) was standardized as the only acceptable type of packaging in 1943.

A bag from a 1942 K Ration packed by the Cracker Jack Company. It appears to be made of glassine laminated to cellophane. (photo: 1944Supply)

Candy coated Beechies chewing gum is included inside the cellophane bag of this 1945 Dinner unit. (photo: 1944Supply)



The chewing gum was not to be included inside the bag because the flavor could impart the other components. Only when later in the war candy coated chewing gum became available again it was allowed to be included inside the cellophane bag. Usually the K Rations produced in 1945 have the candy coated chewing gum.

Contents

The "frilliness" of the ration has been defended as follows: "While this ration has seemed unnecessarily complex to some, the variety contained in it is deliberate. No simple ration has yet been found which did not became tiresome within a few days that the test subjects did not eat sufficient to meet their nutritional requirements"

As already mentioned in the Outer Carton chapter, I have made a distinction between the different designs of the outer carton: the experimental K Ration and four different main types (with two sub types).

In this chapter I will explain the compositions of the contents of the units, according to the types of outer carton design.


Where possible I have illustrated the compositions.

Experimental K Ration

Although officially adopted and standardized in November 1941 as the U.S. Army Field Ration K, this version was only produced in small numbers for field tests. For its first field trail, only 6000 rations were produced.

Breakfast unit:
- Defense biscuits
- Graham biscuits
- can Veal Luncheon meat
- Malted Milk Dextrose tablets
- 2 packages of Soluble Coffee
- 3 Sugar tablets
- Chewing gumme. It's easy.

Dinner unit:
- Defense biscuits
- Graham biscuits
- can Pork Luncheon meat
- Dextrose tablets
- tube of Bouillon paste
- Chewing Gum

Supper unit:
- Defense biscuits
- Graham biscuits
- can Cervelat Sausage
- D-bar
- Lemon juice powder
- 3 Sugar tablets
- Chewing Gum

Type I

In 1942 the new K Ration was procured on limited basis only for field trials, mass production went into high gear in the fall of 1942. Due to the many changes, the early production of the K Ration is printed only with the nomenclature and unit on the outer carton. The confections are of the long variety (3 15/16"). Cigarettes are included from the start.

Early Breakfast units contained a package of 15 Malted Milk-Dextrose and Dextrose tablets, and the Dinner unit contained a package of 15 flavored Dextrose tablets.

Due to the unpopularity of the Dextrose tablets a Fruit Bar was substituted for the tablets in the dinner unit. Soon after, the Malted Milk-Dextrose and Dextrose tablets are switched with the Fruit Bar.

The Supper unit contained three sugar tablets as well. They were not intended for sweetening the bouillon drink, though. The idea of including sugar was to sweeten the chocolate drink made with the D-bar.

A K Ration containing a fruit bar that is packaged in cardboard box. Note that the three sugar tablets are not packed inside the cellophane bag, but the chewing gum is. (photo: 1944Supply)

A K Ration containing a fruit bar that is packaged in cardboard box. Note that the three sugar tablets are not packed inside the cellophane bag, but the chewing gum is. (photo: 1944Supply)

The components af the Breakfast unit shown above. (photo: 1944Supply)

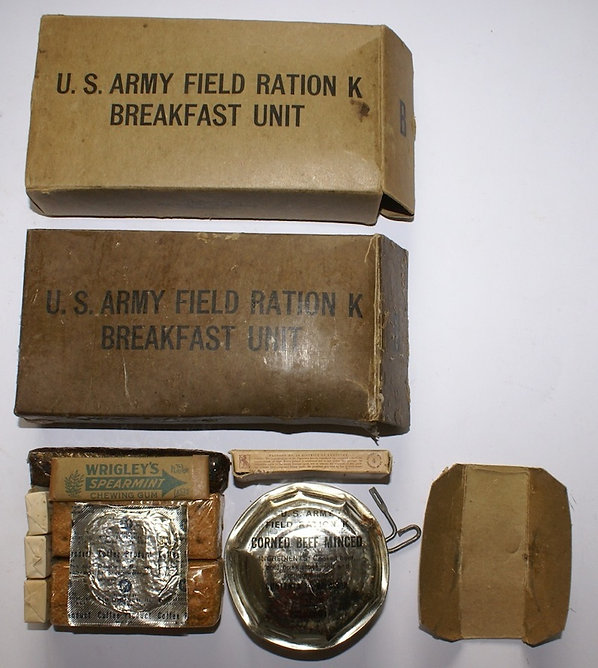

 A Breakfast unit that is basically the same as the one above, but now with the first type of protective sleeve for the can. Packed by the Chicle Co., it contains Dentyne gum.

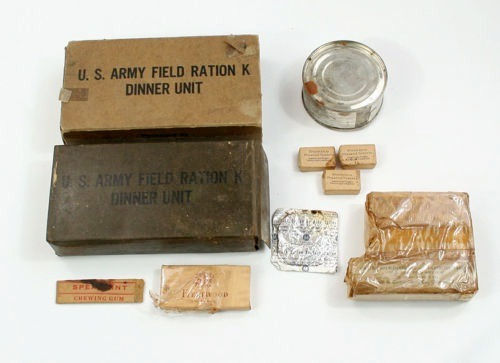

An early Type I Dinner unit that has the three sugar tablets packed separately from the other components in the cellophane. Note the protruding Malted Milk-Dextrose and Dextrose Tablets package. (The coffee is probably not original to this Dinner unit.)

Type II

In Februari of 1943 the addition of instructions on its front panel of the outer carton was approved.

As of March 1943, all confections were shortened to 3 1/8".

The Malted Milk-Dextrose and Dextrose tablets were renamed Malted Milk-Dextrose and Dextrose Candy. In the new 3 1/8" packages there fitted 16 tablets.

Inclusion of a matchbook in one of the units was approved. The matches were already included on the production line before official specifications were drawn up, resulting in the inclusion of the matchbook in the Supper unit sometimes instead of the Dinner unit. The type II is only produced for three to four  months.

The Supper unit still contains three sugar tablets. Later, shortly before the introduction of the toilet paper with Type IIIa, these were omitted.

A Supper unit packaged by the Hills Brothers Company, that includes a matchbook. (Not listed on the back of the outer carton.) The can is dated 3-43. Note that there are three sugar tablets as well. (photo: 1944Supply)

A closer look at the components from the Supper unit shown above. (photo: 1944Supply)



Type IIIa

The U.S. Army decided on standardization of all the field rations in its inventory. The Mountain Ration, Jungle Ration and the 5-in-1 Ration were discontinued and superseded by the 10-in-1 Ration. From May/June 1943 all rations nomenclatures became the "Ration, Type …". This was also applied to the K Ration and the printing on the outer carton was changed accordingly.

In July 1943 a roll of toilet paper was added to the Supper unit,  Soon after, the number of sugar tablets in the Breakfast and Dinner units were increased from three to four tablets.

The unpopular Malted Milk-Dextrose and Dextrose Candy were substituted by hard candies. Production facilities of the hard candies weren't considered adequate, however, and an alternative was found in new caramel candies (Choclettos) in the summer of 1943.

In the fall of 1943 the D-bar was replaced with a Sweet Chocolate bar.


Orange juice powder is sometimes included as an alternative to the lemonade powder. The sugar in the Dinner units could either be four individually wrapped tablets, or a package of equal amount (23 grams) of granulated sugar.

A late 1943 Dinner unit showing progressive changes. The biscuits here is a package of the new type "C" square. The beverage is orange juice powder. Note the GEM's razor blade advertisement on the matchbook cover. Erroneously there were two types of chewing gum inserted in this Dinner unit.



Type IIIb

A warning against malaria was approved for the K Ration's outer carton in February 1944. This warning was later also printed on the matchbook cover, although the blank matchbooks are also still used.

The contents basically remain the same as with the Type IIIa.


Although the change to camouflaged coated cans was approved in late 1943, clear lacquered cans are still used due to existing stock.

An early 1944 Breakfast unit with the malaria warning on one of the side panels.

Although the outer box is missing here, it is of the typical composition for the Type IIIb/IVa with the York Milk Caramels. Note that the biscuits is a package of the square type.

Type IVa

A radical change in the packaging of the K ration was the use of different colors and design for easy identification of the units. The new designs went into production May 1944.


The composition of the contents of the K ration didn't changed much and is basicaly the same as the Type III ration.

The Breakfast unit contained the two packages, each with a different type of small biscuits. Coffee with four sugar tablets, the fruit bar, chewing gum and cigarettes. A can containing an egg product, here Ham and Eggs, is of the new camouflage coated production.

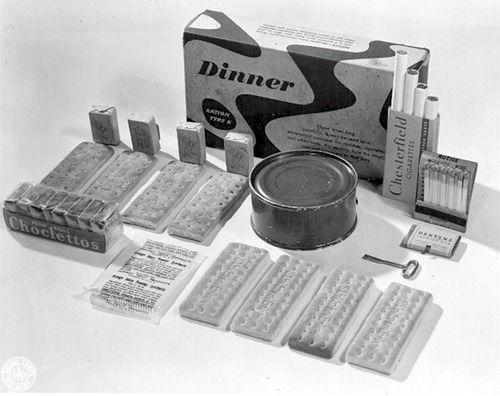

The new Dinner unit is basicaly the same as the Type IIIa shown above. This particular unit still uses the four individually wrapped sugar tablets instead of the new 23 grams package and the orange juice powder is sealed in a clear cellophane envelope.


The matchbook cover carries the warning against malaria and the can is also camouflage coated.
As an alternative to the Choclettos, York Milk Caramels are also used.

The biscuits used in the Supper unit are now predominantly of the square type.

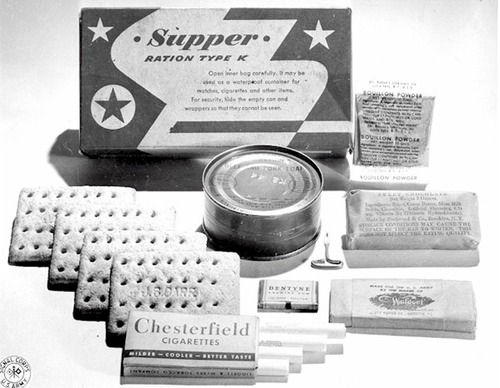

The bouillon is still packaged in a clear cellophane envelope. The confection is the Sweet Chocolate bar. The Beef and Pork Loaf is also packed in a camouflaged can.

A Supper unit with the older notched style sleeve for the can, but the bouillon is packaged in an aluminum laminate envelope.

A type IVa Supper unit with a cellophane bouillon envelope. (photo: 1944Supply)



Type IVb

In the fall of 1944, new specifications were issued on October 31, the composition changed. This is a radical change from the composition of the previous types. In all units a wooden spoon is now included.

A compressed cereal bar was developed and replaced a package of biscuits in the Breakfast unit. Due to the smaller size of this cereal bar, the roll of toilet paper is now included in the breakfast unit. The back panel now includes instructions how to prepare the cereals. An extra envelope of soluble coffee product is added. The number of sugar tablets, however, is not increased.

The caramels in the Dinner unit are replaced with a candy bar, usually a Milky Way bar, or a kind of chocolate fudge bar. The 23 grams sugar package is replaced with an 1.2 oz. compressed block of granulated sugar. As an alternative to the lemon and orange juice powders, grape juice powder might be used.

To supplement the bouillon drink in the Supper unit an envelope of soluble coffee product is included. To sweeten the coffee, a package of 23 grams of granulated suger is included, taking the place of the roll of toilet paper. The 2-ounce Sweet Chocolate bar is replaced with a package of caramels, either chocolate or vanilla flavor. Back panel now lists both coffee and bouillon.

In the summer of 1945 a small vial holding four salt tablets is included in the Dinner unit. The list on the outer carton now includeds the text "salt tablets". The confection of the Supper unit is now either one of the two flavors of caramels, or two 1-ounce chocolate bars. In the fall of 1945 the matches were moved from the Dinner unit to the Supper unit.

The Type IVb being the final version and produced until 1946, this is the most often found intact version today.

An early 1945 Kellogg's Breakfast unit packed in a Type IVa outer carton.

A Type IVb Breakfast unit, missing here is the compressed cereal bar.

Contents from a Type IVb breakfast unit. There were two different coffee brands included, both packaged by Henry Heide Inc. (photo: 1944Supply)

A 1945 Breakfast unit. Note the Chiclets chewing gum, and the sugar tablets made by the Manhattan Coffee &Sugar Co. The Luckies are noteworthy as well. (photo: 1944Supply)

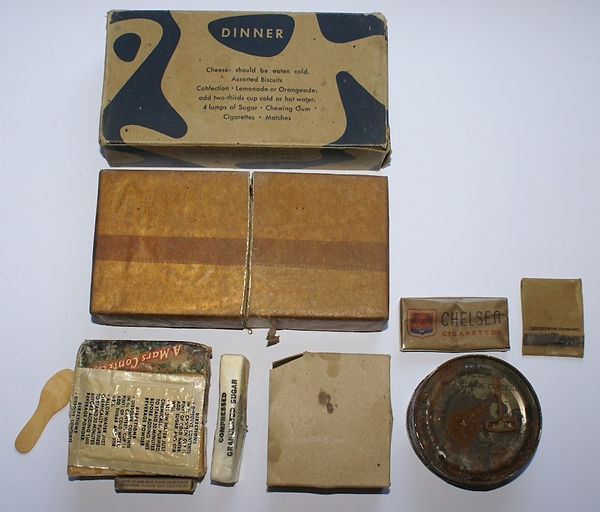

Althought the box still list 4 lumps of sugar, there is an 1.2 oz.  block of compressed sugar in this Type IVb Kellogg's Dinner unit. The Milky Way bar kind of liquified over time

This Type IVb Dinner unit still contains a blank matchbook and a notched sleeve. The inner carton is protected by a kraftpaper/aluminum laminate wrapping. Note the small box  that holds two candy coated chewing gum tablets. (photo: 1944Supply)

Contents from a mid 1945 Type IVb Dinner unit with a chocolate fudge bar instead of the usual Milky Way or Mars candy bar. (photo: 1944Supply)

A Kellogg's Type IVb Supper unit with the vanilla flavored caramels. This unit was also packed in a Type IVa outer carton.

A late Supper unit like the one above also packed in a Type IVa outer carton.
Note that only the bouillon is mentioned as a beverage. The caramels are simply listed as confections.

Contents of a late Supper unit showing two 1-ounce sweet chocolate bars as confection. Included within this particular Supper unit is a vial with salt tablets. (photo: 1944Supply)
